Description

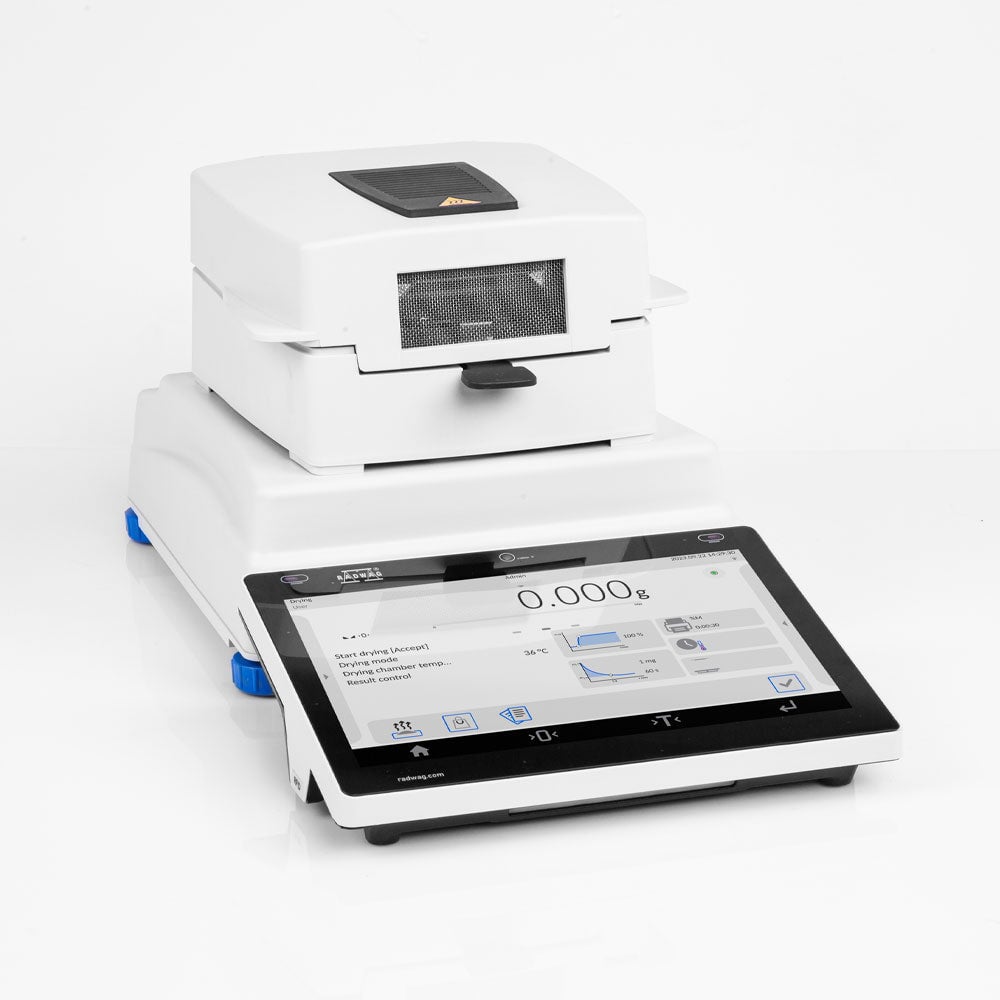

The MA 5Y.IC.WH Moisture Analyzer has four finish modes: automatic, manual, time-defined and user-defined.
Automatic mode
You define the moisture loss limit value in 60 seconds. When the moisture analyzer reaches the set criterion, the measurement will automatically end.
Manual mode - You terminate the measurement yourself by pressing the STOP button.
Time-defined mode - The measurement ends after the set time has elapsed regardless of the result. You have up to 99 hours 59 minutes to manage!
User-defined mode - When you remove all volatiles from a sample, by definition, its mass should be constant. During drying, the dry mass of the sample is defined by a condition: if the mass of the sample is stable within 1 mg during the observation time (Auto 1-5), we consider that all volatile components have been removed from its structure.
Features:
Heating module halogen
Moisture content repeatability +/-0.05% (sample ~ 2g), +/-0.01% (sample ~ 10g)
Drying temperature range max 250 °C
Leveling system semi-automatic - LevelSENSING
Display mode %MC, %DC, %ATRO MC, %ATRO DC, g, g/kg MC, g/kg DC, -%MC
External mass standard 50 g, 100 g, 200 g (depending on the type of moisture analyzer)
Three-point adjustment at defined temperatures, programmable values (equipment: GT105k-12/Z Control Thermometer)
4 drying profiles (standard, fast, step, mild)
4 modes (automatic, manual, time-defined, user-defined)
Also, check out the How does a moisture analyzer work?
Specifications
capacity-g | 110 |
---|---|
carton-dimensions | 476×381×346 |
communication | USB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot |
display | 10" Color Touchscreen |
list-price | 5424.00 |
manufacturer-part-number | WL-304-0051 |
operating-temperature | +10 — +40 °C |
pan-dimension | ø90, h= 8 mm |
power-consumption | 6 W |
power-supply | 100V – 120V AC 50/60Hz or 200V-240V AC 50/60Hz |
readability-g | 0.001 |
Spec Sheet | Spec-Sheet_MA_110.5Y.IC.WH.pdf |
