Description

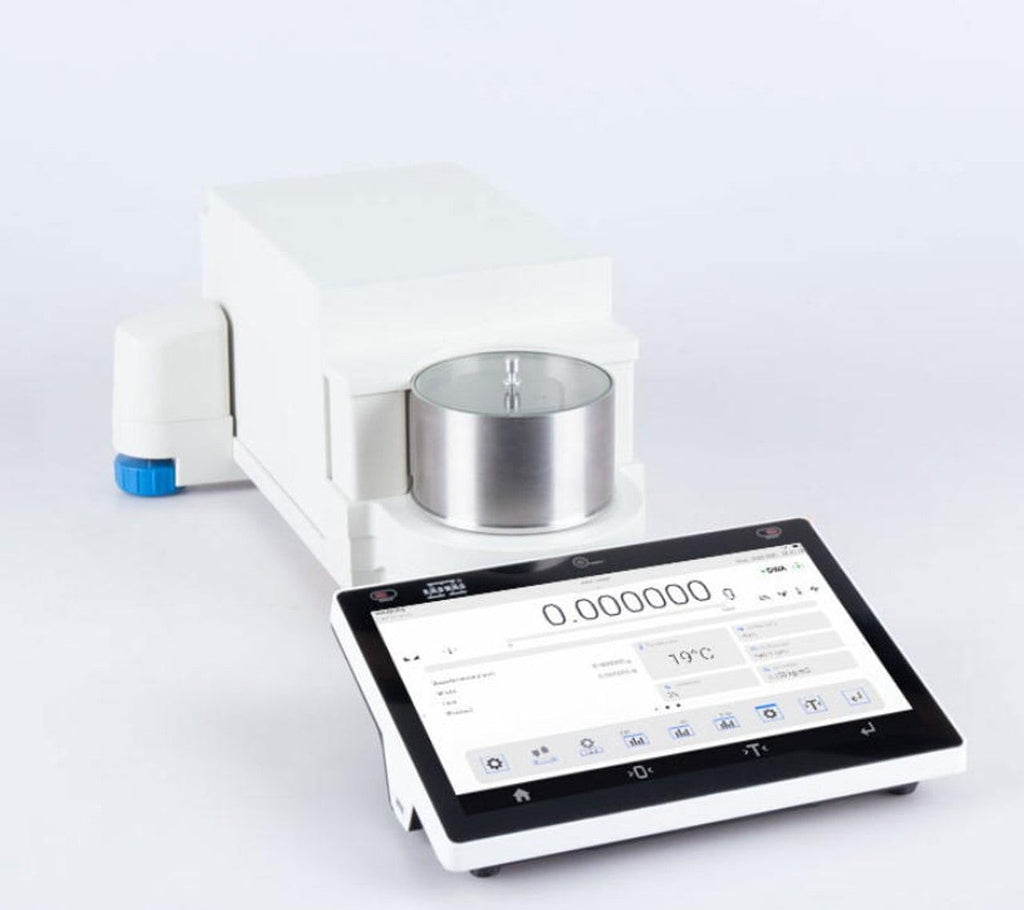

The Radwag Ellipsis MYA 5.5Y.F.A features some of the most unique and innovative features available in the balance market. It offers automatic internal calibration, hands free operation through the IR sensors, and an unmatched security of data. The 5Y is compliant in a variety of relevant functions and offers connectivity to everything from a smart phone, tablet, or even a printer. Ellipsis monitors temperature, humidity, pressure, and vibration all while displaying as graphs or a widget on the home screen. Unsuitable conditions for the balance are signaled by DWA. and all of this information is recorded in a dedicated database for the end user to reference. This function alone can save the operator valuable time and provide insight as to why a certain measurement may skew data.
This model "5.5Y.F.A" is significant because the "F" in the name means that the balance has a chamber designed for working in filter weighing applications.
Features:
Automatic internal calibration that senses changes in ambient conditions to maintain accuracy
Large 10" color touchscreen with customizable home menu
IR sensors for hand free operation
Smart automatic reflex leveling system
Works with RFID tags
Up-to-date information on ambient conditions
Real-time statistics from a series of measurements
Tool free disassembly of the weighing chamber
USP compliant
Pharmacopoeia compliant
Full data security
Electronic signatures, records, and audit trails
Quick review library that shows the last 20 measurements
Ability to add notes via text or voice to a series of measurements for reporting Also, check out A&D FZ-120i FZ-i Series Precision Balance
Specifications
capacity-g | 5 |
---|---|
chamber-dimensions | 93.8 mm x 35 mm |
communication | USB-A x 2, USB-C, HDMI, Ethernet, Wi-Fi, Hotspot |
display | 10" Color Touchscreen |
lead-time | 8 seconds or less |
list-price | 19051.00 |
manufacturer-part-number | MYA 5.5Y.F.A |
operating-temperature | 10° to 40°C |
pan-size | 70 mm and 16 mm diameter |
readability-g | 0.000001 |
Spec Sheet | Spec_Sheet-5.5_Y.F.A.pdf |
