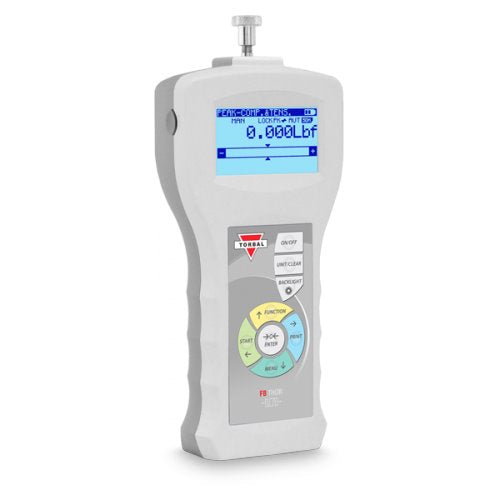

Torbal FB50 Precision Force Gauges

Save $154.93
TorbalSKU: FB50

Price:
Sale price$619.74 Regular price$774.67

Shipping calculated at checkout

Stock:
In stock
 More payment options

Description

10lbf x 0.002lbf (50N x 0.01N) The FB is an affordable fully configurable force gauge designed for a wide range of tension and compression applications. No complex configuration or setup, the force gauge is intuitive and easy to use with logically arranged user menus which allow for out-of-the-box use. The unit includes all essential force measuring modes such as Peak, Multi Peak, and Standard (Real Time). Easy-to-use Pass / Fail threshold settings makes the FB ideal for quality control applications. USB, RS232, and microSD allow for easy PC connectivity and measurement data management. The FB series is equipped with four powerful and easily removable batteries which keep the force gauge charged up to 32 hours. The force gauge is overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which shows the amount of capacity used during force measurements.

Specifications

accuracy ±0.2% Full Scale
battery 4 x Ni-MH 2700mAh
battery-operating-time 32h (LCD Backlight OFF) | 27h (LCD Backlight ON)
brand Torbal
capacity-volume 10lbf | 5kgf | 50N
dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm
gtin 728028234831
interfaces USB (B Type), RS232, microSD (SDHC Class 4)
lead-time 2
list-price 774.67
Manual FB50_Manual.pdf
manufacturer-part-number FB50
model FB50
operating-temperature 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max
overload 200% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
resolution 0.002lbf | 1gf |0.01N
units-of-measure N, kgF, lbF, ozF,lb, oz, kg
warranty-covering-parts-and 24 months
