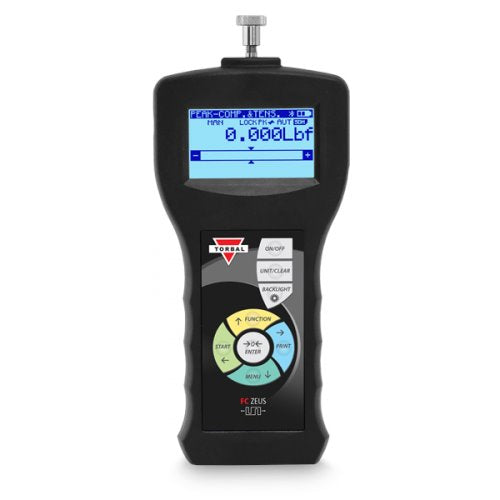

Torbal FC50 Professional Force Gauges

Save $194.74
TorbalSKU: FC50
No reviews

Price:
Sale price$778.98 Regular price$973.72

Shipping calculated at checkout

Stock:
In stock

Description

10lbf x 0.002lbf (50N x 0.01N) Advanced professional force gauge with a max capacity of 10lbf and a resolution of 0.002lbf. Premium design and superior performance make the FC50 ideal for even the most demanding tension and compression applications. The FC guarantees utmost accuracy and productivity with ultra-fast 1000Hz real time sampling and data capture. Loaded with hardware features such as built-in wireless, expandable microSD memory card, USB, RS232, and an I/O output port. The analog input-output allows to connect external peripherals such as Pass / Fail buzzer, light signalization, or an external trigger switch. Peak and Multi Peak modes are enhanced with configurable features such as peak detection sensitivity, measurement time delay, force trigger, auto zeroing, and automatic data storing. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. The force gauge is overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which displays the amount of capacity used during force measurements. Backlit auto-rotate display automatically adjusts to the position of the force gauge. Excellent battery life with four powerful and easily removable Ni-MH 2700mAh batteries.

Specifications

accuracy ± 0.1% Full Scale
battery 4 x Ni-MH 2700mAh
battery-operating-time 29h (LCD Backlight OFF, BT Wirless OFF) | 25h (LCD Backlight ON, BT Wirless OFF)
brand Torbal
capacity-volume 10lbf | 5kgf | 50N
dimensions 8.46” x 3.93” x 1.57” | 215mm x 100mm x 40mm
gtin 647603932972
interfaces BT Wireless, USB (B Type), RS232, microSD (SDHC Class 4)
lead-time 2
list-price 973.72
Manual FC50_Manual.pdf
manufacturer-part-number FC50
model FC50
operating-temperature 14°F to 104°F | -10 to 40°C | Humidity: Up to 80 % Max
overload 200% Full Scale (Display Limit: 110%)
power-supply 12V, 1.2A
resolution 0.002lbf | 1gf | 0.01N
units-of-measure N, kgF, lbF, ozF,lb, oz, kg
warranty-covering-parts-and 36 months
