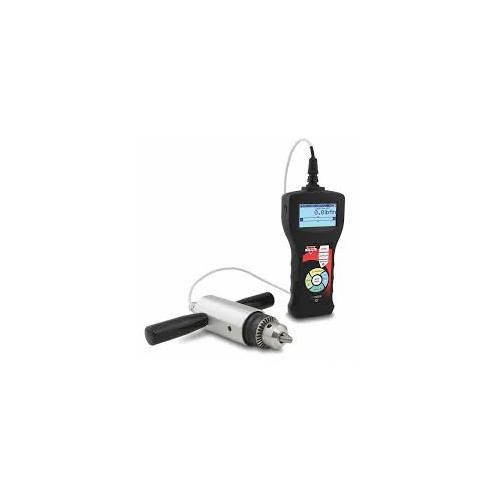

Torbal FSB5-NIST Clamp Torque Gauge

44lbf.in x 0.01lbf.in (5Nm x 0.001Nm) High precision chuck clamp torque gauge with a maximum capacity of 44lbf.in and resolution of 0.01lbf.in. Ideal for clockwise and counter clockwise torque testing applications. The FSB5 samples at a rate of 1000Hz and guarantees optimum precision and accuracy at all times. Measurements are automatically saved to the removable microSD memory card or can be easily sent via USB to a laptop or a PC. Ergonomic external loadcell sensor with detachable handles assures handheld stability. The loadcell is overload protected up to 150% full scale and accepts virtually any bit, grip or attachment compatible with conventional chuck clamps. Standard, Peak, Multi-Peak, and Fill-Meter functions guarantee maximum functionality and flexibility when taking measurements. Every function is optimized with statistical analysis, onscreen graphs, and a histogram. Analog I/O ports allows for threshold signaling and control of external peripherals. Powerful nickel–metal hydride batteries keeps the gauge charged up to 16 hours. NIST Traceable Certificate with Data.
