Description

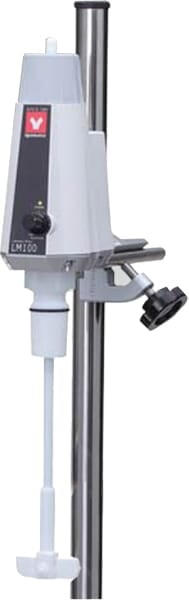

LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect for samples of high volume and high viscosity.
Features:
- Wide range rotation speed of 50-1000 rpm
- Maintenance free and superior DC brushless motor
- Belt drive transmission minimizes noise and vibration
- Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
- Directly attachable to a three-neck flask 24/40, 29/42 optional
- Variety of stirring shafts and blades available to handle small to large volume samples
- Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
- At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
- Equipped with 24/40 rotary joint, 29/42 optional
- Capable of AC100-240V by changing power cord
Click here for Most Common Types of Lab Mixing Equipment
Specifications
| dimensions-mm | 69 × 108 × 222 |
|---|---|
| list-price | 770.00 |
| manufacturer-part-number | LM-100 |
| power | Single phase AC100V~AC120V 50/60Hz 1A |
| Spec Sheet | Spec-Sheet_LM_Series.pdf |
| temp.-range | 5°C~35°C |
