Description

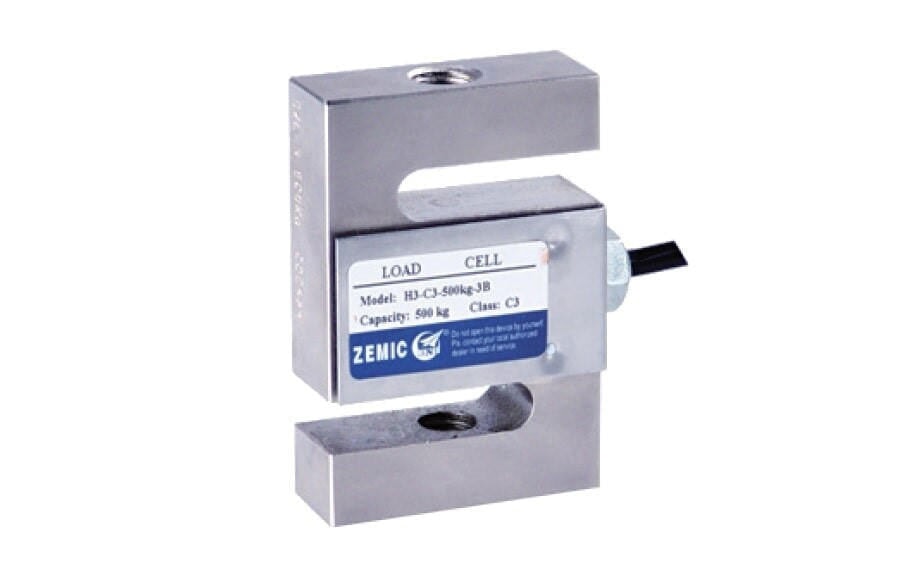

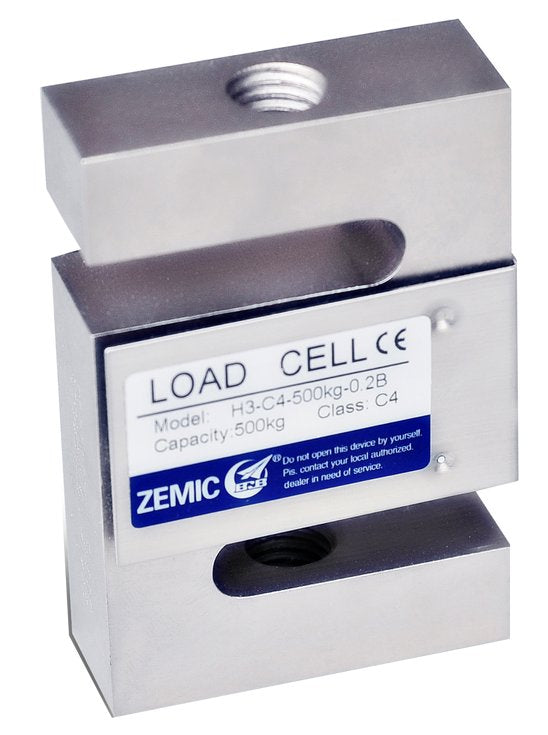

Nickel plated alloy steel IP67 “S” type load cell.
Tension and compression applications.
Suitable for hanging, hopper and other weighing devices.
Also available in imperial capacities and dimensions.
Specifications
| Applications | OEM. Crane scales. Hoppers. Tank scales. Tension and compression |
|---|---|
| cable-length | 20 ft |
| capacity | 20000 lb |
| dimensions | 7" x 4.94" x 2" |
| Legal-for-Trade | Yes |
| Load-Cell-Rated-Excitation | 5-12 VDC (maximum of 18 V) |
| manufacturer-part-number | H3 (15Klb-20Klb) |
| Material | Nickel Plated Alloy Steel |
| Operating-temperature | -31‚° F to 158‚° F / -35‚°C to 70‚°C |
| overload | 150% capacity (safe) / 300% capacity (ultimate) |
| Spec Sheet | Spec_Sheet-H3.pdf |
| temp.-range | 14‚°F to 104‚°F (-10‚°C to 40‚°C) |
